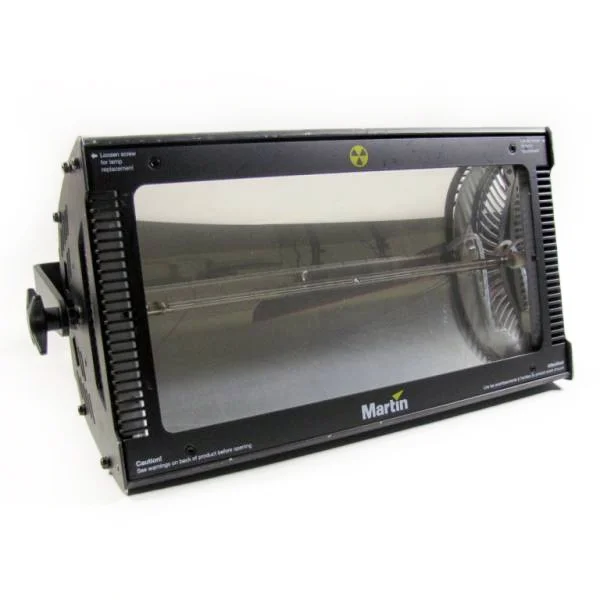

Martin Atomic 3000 DMX

Martin Atomic 3000 DMX


Length: 425 mm (16.7 in.) without bracket

Width: 245 mm (9.6 in.) without bracket

Height: 240 mm (9.4 in.) without bracket

Weight: 7.5 kg (16.5 lbs.) without bracket

Dynamic Effects

Variable strobe: 0 - 650 ms (50 Hz supply), or 0 - 530 ms (60 Hz supply)

Strobe rate: 0 - 25 flashes/second (50 Hz supply), 0 - 30

flashes/second (60 Hz supply)

Strobe intensity: Blackout - maximum

Blinder effect: Continuous with auto fade

Special effects: Ramp up, ramp down, ramp up-down, random flash, lightning, spikes, blinder, single flash

Control and Programming

Control options: DMX, stand-alone, multi-fixture chase (with Detonator remote), MC-1

Stand-alone control: Via N.O. or N.C. SPST switch

Stand-alone options: Selectable flash rate or blinder effect

Setting and addressing: DIP switch

DMX channels: 1, 3, and 4 channel modes

Receiver: RS-485

DMX compliance: USITT DMX512/1990


Type: Xenon discharge

Approved lamps: MAX-15 Xenon (200-240 V power), MAX-7 Xenon (100-120 V power)


Housing: Steel

Color: Black

Finish: Electrostatic powder-coated


Minimum clearance around fan and air vents: 0.1 m (0.4 ft.)

Mounting points: Five 12 mm (0.5 in.) holes in mounting bracket

Orientation: Any

Minimum distance to combustible materials: 0.5 m (1.7 ft.)

Minimum distance to illuminated surfaces: 1 m (3.3 ft.)


Power connection: 1.5 m (4.9 ft.) cable tail, 14 AWG

DMX data in/out: 3-pin and 5-pin XLR sockets

  • Electrical

  • AC power (MAX-7 model): 100-120 V nominal, 50/60 Hz

  • AC power (MAX-15 model): 200-240 V nominal, 50/60 Hz

  • Power supply unit: Auto-ranging electronic switch-mode

  • Typical current consumption (MAX-15, high power mode): 8 A

  • Peak current consumption: 33 A

  • Main fuse (all AC power voltages): 20 AT (slow blow), 250 V

  • AC mains power cable: 14 AWG or 2.5mm2
