Jem ZR44 Hi Mass

Jem Zr 44 Hi Mass

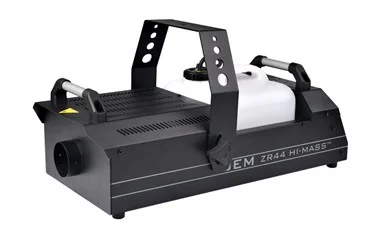

The Jem ZR44 Hi-Mass™ is a reliable and highly efficient fogger capable of precise fog delivery from subtle to massive. Ideal for a variety of settings from small venues to huge stadiums and arenas, it features advanced technology for top-quality performance, as well as advances in digital functionality such as RDM compatibility.


  • 3 & 5 pin DMX interface

  • Prepared for multifunctional digital remote

  • RDM capable

  • Floor standing or truss mounting

  • Neutrik PowerCon connector

  • 1200 m³/min fog output

  • Continuous output

  • Tough and solid design

  • 1800 W heat exchanger

  • 7.5 min heat-up time

  • Indirect Fluid Sensing System

  • Proprietary Pro Steam Simulation fluid solution

  • Different fluid options for different applications

  • Leaves no oil residue on light fixtures

  • Soft Start technology



Length: 687 mm (27.1 in.)

Length with optional drip tray: 752 mm (30.0 in.)

Width: 379 mm (15.0 in.)

Height: 248 mm (9.8 in.)

Height with hanging bracket: 353 mm (13.9 in.)

Weight, dry: 19.0 kg (41.9 lbs.)

Weight, filled: 28.5 kg (62.9 lb.)


Coverage volume: 1200 m3 (42,378 ft3) per minute

Fluid consumption (maximum): 120 ml/minute

Continuous effect outputReady time: 10 minutes

Control and Programming

Control options: Integrated analog remote control, DMX, optional digital remote control, master/slave link mode

Control parameters: Continuous or timer-controlled variable output

Fog: Variable output control, 0-100%

DMX channels: 1

DMX compliance: USITT DMX512-A

RDM compliance: ANSI/ESTA E1.20 RDM


Color: Black, silver

Housing: Steel and aluminum

Fluid reservoir: 9.5 liter drop-in

Hanging bracket: Integrated yoke with safety attachment point

Heat exchanger: 1800 W, thermally protected

Fluid pump: Oscillating piston, high pressure

Fluid management: Fluid out sensing, sealed for transportation

External fluid control: Fluid sensing

Drip tray: Optional, bolt-on tray with reusable collection sponge


Mounting: Standing or hanging

Orientation: Up to +/- 45° from horizontal

Clearance around machine: 100 mm (4 in.)


AC power: Neutrik PowerCon

DMX, link mode in/out: 3- and 5-pin locking XLR

Remote control: 3-pin locking XLR

Firmware: AVR socket

ElectricalEU Model

AC power: 220-240 V, 50/60 Hz

Main fuse: 10 AT (slow blow), 250 V

Typical power and current: 1890 W, 8.3 A*
